TYFZ Pressure Regulating Valve Group

Product overview

Product model: TYFZ
Applicable blast furnace: 100~2500M3
Applicable temperature: ≤350℃
Nominal diameter: 1375~2930
Applicable medium: air, gas and other gases

TYFZ Pressure Regulating Valve Group product details

TYFZ Pressure Regulating Valve Group main part material

Part Name	Body	Valve plate	Valve stem	Connection barrel	Size flange	Gasket
material	Carbon steel	Carbon steel	alloy steel	Carbon steel	Carbon steel	Asbestos rubber

TYFZ Pressure Regulating Valve Group technical performance

Valve set model	Medium temperature ℃	Medium pressure MPa	Media flow m3 / h	Valve corner	Remarks
TYFZ-10	≤350	-0.05	-30000	0-90 °	-
TYFZ-30	"	-0.07	48000-58000	0-90 °	-
TYFZ-38	"	-0.07	68000-85000	0-90 °	-
TYFZ-65	"	-0.1	111000-130000	0-90 °	-
TYFZ-75	"	-0.15	137000-157000	0-90 °	-
TYFZ-90	"	-0.2	170000	0-90 °	-
TYFZ-100	"	-0.2	187000	0-90 °	-
TYFZ-125	"	-0.25	205000	0-90 °	-
TYFZ-135	"	-0.25	250500	0-90 °	-

TYFZ Pressure Regulating Valve Group performance parameters of electric device

DN	Electric actuator		Power voltage, input signal current	One-way (90 °) opening and closing time
	model	Output torque
250	DKJ-210 or DKJ-210Q	100N.m	DDZ-II type 0-10mA DDZ III type 4-20mA 220V.AC	25
300				25
350	DKJ-310 or DKJ-310Q	250N.m
400				25
450
600	DKJ-410 or DKJ-410Q	600N.m		25
700
800	DKJ-510 or DKJ-510Q	1600N.m
900				25

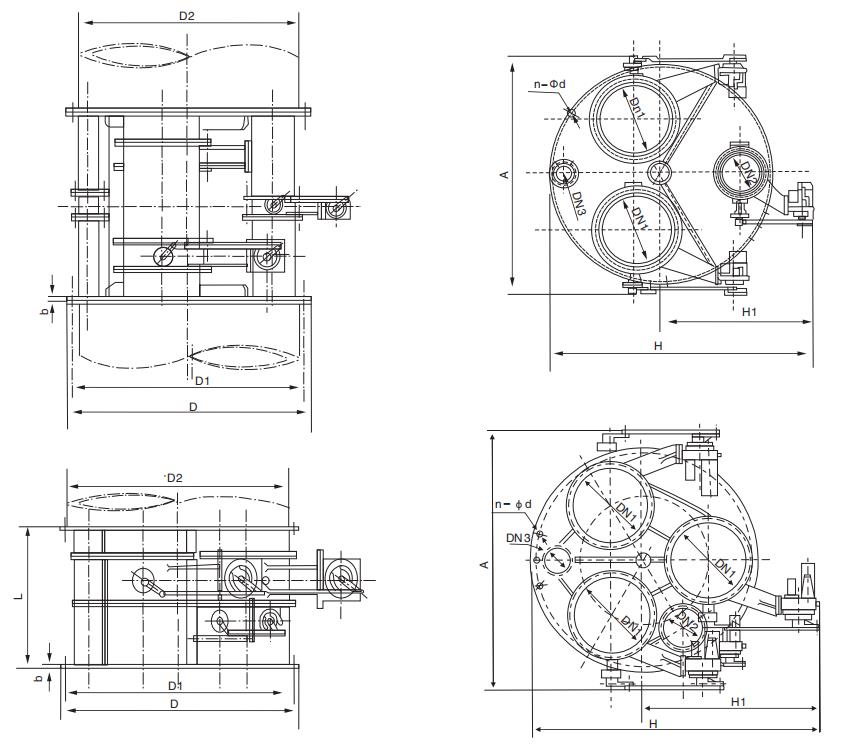

TYFZ Pressure Regulating Valve Group main shape and size of the connection table

model	D	D1	L	b	n-Φd	A	A1	Η	H1	Valve preparation	Allowable traffic (m3 / h)	Weight (kg)	Corresponding to the pipeline
TYFZ-25	1990	1930	1000	30	44-Φ30	3600	1800	2150	1150	600x2 + 300x1 + 150	55000-65000	2800	1200
TYFZ-30	1990	1930	1000	30	44-Φ30	3600	1800	2150	1150	700x2 + 300x1-150	65000-77000	3200	1300
TYFZ-40	1990	1930	1000	30	44-Φ30	3600	1800	2250	1250	700 χ 1 + 800 χ 1 + 350 χ + 150	77000-91000	3400	1400
TYFZ-50	2190	2130	1200	30	48-Φ30	3800	1900	2600	1500	800x2 + 400x1 + 200	91000-105000	3700	1500
TYFZ-60	2305	2240	1200	30	48-Φ30	4000	2000	2800	1600	800 χ 1 + 900 χ 1 + 400 χ 1 +200	105000-120000	4900	1600
TYFZ-65	2190	2130	1200	30	48-Φ30	4000	2000	2800	1600	700x3 + 350x1 + 200	111000-130000	5000	1700
TYFZ-75	2305	2240	1200	30	48-Φ33	4000	2000	2800	1600	900x2 + 500x1 + 200	120000-150000	5300	1800
TYFZ-90	2405	2340	1200	30	52-Φ 33	4000	2000	2550	1350	800x3 + 400x1 + 250	137000-170000	6700	1900
TYFZ-100	2605	2540	1200	30	56-Φ33	4200	2100	3000	1700	1000x2 + 500x1 + 200	150000-190000	7000	2000

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the TYFZ Pressure Regulating Valve Group performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
