BPQ340TC Ceramic Eccentric Half Ball Valve

Product overview

Product model: BPQ340TC
Nominal diameter: DN50 ~ 300mm
Nominal pressure: PN1.6MPa
Connection mode: flange
Applicable medium: iron and steel industry, washing and dressing, power station, ash removal and other industries, ore slurry, ash slag slurry and other media
Applicable temperature: -29℃~121℃
Valve manufacture: GB/T 12224
Flange standard: GB/T9113
Valve test: GB/T 9092

BPQ340TC Ceramic Eccentric Half Ball Valve product details

BPQ340TC Ceramic Eccentric Half Ball Valve product Description:

BPQ340TC Ceramic Eccentric Half Ball Valve produced and sold by Baigang valve group using eccentric valve body, eccentric ball, valve seat, stem for the rotation movement in the common trajectory automatic centering, the process of closing the more off the more tight, fully achieve the purpose of a good seal. Valve ball and seat completely separated, eliminating the wear ring, to overcome the traditional ball valve seat and the ball sealing surface is always worn problem, non-metallic elastic material is embedded in the metal seat, the valve seat metal surface is well protected. Especially for the steel industry, washing ore, power plants, ash and other industries, mineral slurry, ash slurry and other media.

Valve seat and hemisphere sealing surface are used engineering ceramics, high hardness, erosion resistance, long life. It is suitable for the solid-liquid mixing medium containing powder particles for opening and closing; the hemisphere is a fixed ball type with good rigidity. The shape of the V-shaped hemisphere, small size, light weight; seat sealing surface and the hemisphere sealing surface spacing is adjustable, so the valve after use for a certain period of time, sealing surface spacing can be further adjusted to extend valve life; valve in full When the valve body passage is completely smooth, medium flow resistance is small.

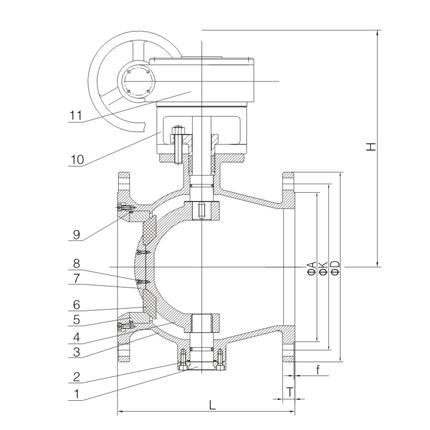

BPQ340TC Ceramic Eccentric Half Ball Valve main parts and materials:

Serial number	name	material	Serial number	name	material
1	cap	WCB	7	Pressure ring	WCB
2	Gasket	fluororubber	8	bolt	20 #
3	Body	WCB	9	Gasket	fluororubber
4	Hemisphere	WCB	10	Bracket	WCB
5	Seat	Structural ceramics	11	Drive	Finished pieces
6	Sealing ring	Structural ceramics	12

BPQ340TC Ceramic Eccentric Half Ball Valve application Specification

Design and manufacture		GB / T 12224
Connector size	Structure length	GB12221
	Flange size	GB / T9113
Inspection and testing		GB / T 9092
material	Carbon steel	GB / T 12229
	stainless steel	G B / T 12230
Sign		G B / T 12220
Availability		G B / T 12252

BPQ340TC Ceramic Eccentric Half Ball Valve main shape and connection dimensions:

PN (Mpa)	DN (mm)	H	L	D	D1	D2	nd	C	F
1.6	50	230	124	165	125	100	4-Φ18	16	3
	65	237	145	185	145	120	4-Φ18	18	3
	80	260	165	200	160	135	8-Φ18	20	3
	100	270	194	220	180	156	8-Φ18	20	3
	125	320	210	250	210	185	8-Φ22	22	3
	150	340	229	285	240	211	8-Φ22	26	3
	200	390	243	340	295	265	8-Φ23	26	3
	250	420	297	405	355	319	8-Φ26	30	3
	300	510	338	460	410	375	8-Φ26	30	4

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the BPQ340TC Ceramic Eccentric Half Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
