H664Y Extraction Check Valve
Product overview
Product model: H664Y
Nominal diameter: DN50 ~ 1000mm
Nominal pressure: Pn1.0 ~ 10.0MPa
Operating temperature: ≤550℃
Main material: WCB, WC6, WC9
Applicable medium: water, steam, air, oil
Design standard: API 6D, BS 1868, GB/T 12235, GB/T 12236, JB/T 8937
Structure Length: ASME B16.10, API 6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, ASME B16.25, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, API 6D, GB/T 13927, GB/T 26480
Pressure and temperature rating: ASME B16.34, GB/T 12224
First, H664Y extraction check valve purposes
H664Y Extraction Check Valve performance specifications
1, the nominal pressure:
| Nominal pressure | 1.0 ~ 2.5 | 4.0 ~ 6.4 | 10.0 |
| Nominal diameter | 50 ~ 1000 | 50 ~ 400 | 80 ~ 350 |
2, the medium: water, steam, air, oil
3, the working temperature:
| The main material | WCB | WC6 | WC9 |
| Operating temperature | ≤425 ℃ | ≤540 ℃ | ≤550 ℃ |

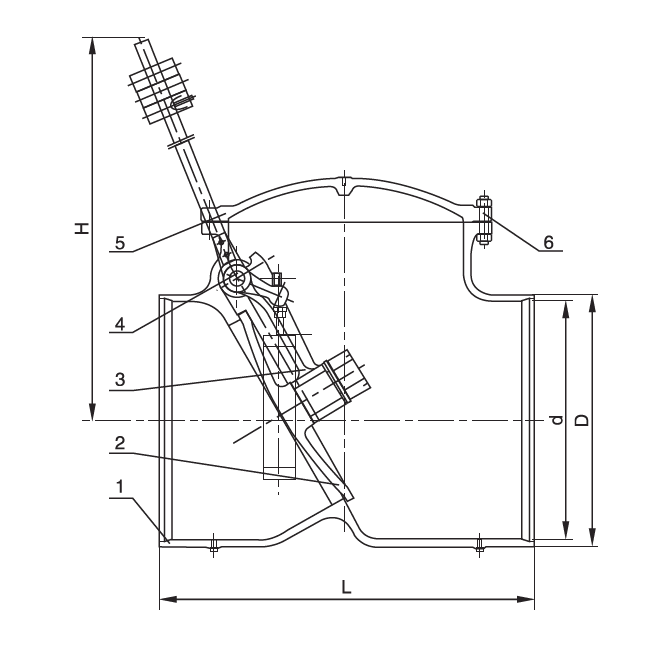

H664Y Extraction Check Valve main dimensions
| H664H-10 | ||||||||||
| DN | L | D | D1 | D2 | H | H1 | H2 | H3 | L1 | W (kg) |
| 450 | 740 | 428 | 476 | 630 | 990 | 425 | 510 | 755 | 486 | 620 |
| 500 | 790 | 468 | 520 | 658 | 990 | 470 | 545 | 852 | 554 | 759 |
| 700 | 1040 | 682 | 747 | 845 | 990 | 560 | 625 | 1240 | 820 | 1258 |
| 800 | 1295 | 780 | 842 | 995 | 1257 | 650 | 645 | 1348.3 | 928 | 1788 |
| 1000 | 1600 | 1110 | 1150 | 1230 | 1700 | 850 | 745 | 1840 | 1040 | 4800 |
| H664H-16 | ||||||||
| DN | L | D | D1 | D2 | H | H1 | H2 | W (kg) |
| 200 | 526 | 195 | 239 | 410 | 815 | 325 | 390 | 236 |
| 300 | 610 | 300 | 354 | 494 | 845 | 350 | 445 | 376 |
| 400 | 838 | 380 | 436 | 600 | 1142 | 450 | 490 | 674 |
| H664H-25 | ||||||||
| DN | L | D | D1 | D2 | H | H1 | H2 | W (kg) |
| 250 | 680 | 250 | 302 | 475 | 904 | 380 | 440 | 385 |
| 500 | 1020 | 480 | 584 | 820 | 1240 | 580 | 560 | 1537 |
